In the modern electronics industry, where precision and reliability are paramount, laser trimming machines have become essential tools in achieving optimal performance for thick film resistors and hybrid circuits. With the demand for thick film solutions on the rise, advanced laser technologies such as laser clipping have transformed the way engineers fine-tune components.

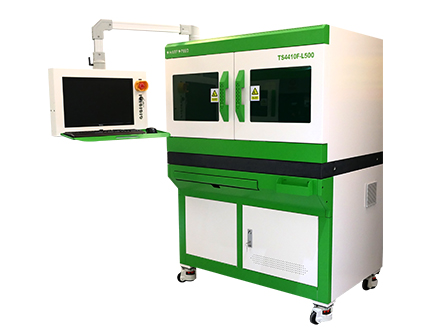

What Is a Laser Trimming Machine?
A laser trimming machine is a high-precision device used to adjust the resistance value of thick and thin film resistors by removing material through laser ablation. This non-contact process enables precise resistance control within tight tolerances, making it ideal for manufacturing sensors, RF components, power resistors, and analog circuits.
Key features of laser trimming machines:
-
Micron-level precision for resistance control
-
Real-time feedback loops and automated trimming algorithms
-
Supports both thin film and thick film substrates
-
Integration with testing instruments for closed-loop trimming
Why Choose Thick Film Solutions?
Thick film technology involves the deposition of conductive and resistive pastes on ceramic substrates, followed by firing at high temperatures. It is widely used in automotive, aerospace, industrial, and medical electronics due to its durability and cost-effectiveness.
Advantages of thick film solutions include:
-
High power and temperature tolerance
-
Compact design for high-density circuit integration
-
Long-term stability under harsh conditions
-
Compatibility with laser trimming and laser clipping for customization
When paired with a laser trimming machine, thick film circuits can be precisely tuned for optimal performance across a wide temperature range and demanding load conditions.
Laser Clipping: A Fine-Tuning Innovation
Laser clipping is a highly refined laser trimming method used to adjust electrical values or cut micro-scale patterns in thick film circuits. Unlike traditional mechanical methods, laser clipping is contactless and capable of removing minimal material without damaging the substrate.
Use cases for laser clipping:
-
Adjusting resistance of thick film resistors to meet tight tolerances
-
Opening circuit traces for testing or calibration
-
Isolating defective areas in hybrid circuits
-
Creating specific trimming patterns (L-cut, U-cut, serpentine)
By integrating laser clipping into the production line, manufacturers can improve both the quality and efficiency of their thick film components.
Applications Across Industries
Laser-trimmed thick film solutions are widely used in:
-
Automotive control systems (ABS, ECU)
-
Industrial automation (sensors, actuators)
-
Aerospace electronics (flight control modules)
-
Medical devices (imaging, diagnostics)
-
Consumer electronics (audio equipment, power modules)
In all these applications, laser trimming machines ensure that circuit performance remains consistent and within design parameters.
FAQ – Laser Trimming & Thick Film
Q1: What’s the difference between thick film and thin film resistor trimming?
Thick film uses fired pastes on ceramic, while thin film uses sputtered materials. Both can be trimmed, but thick film is more rugged and cost-effective.
Q2: Can laser clipping damage the thick film substrate?
No. When properly configured, laser clipping is a non-destructive process that removes only targeted material with micron precision.
Q3: Are all laser trimming machines compatible with thick film materials?
Not all. You need to ensure the machine supports high-power laser configurations and has adjustable parameters for thick film substrates.
Q4: How precise can laser trimming get?
Modern systems can achieve resistance tolerances of ±0.01% or better, depending on the material and design.
Q5: Can laser trimming be automated?
Yes. Most systems today offer closed-loop feedback with integrated testing for full automation and production efficiency.
